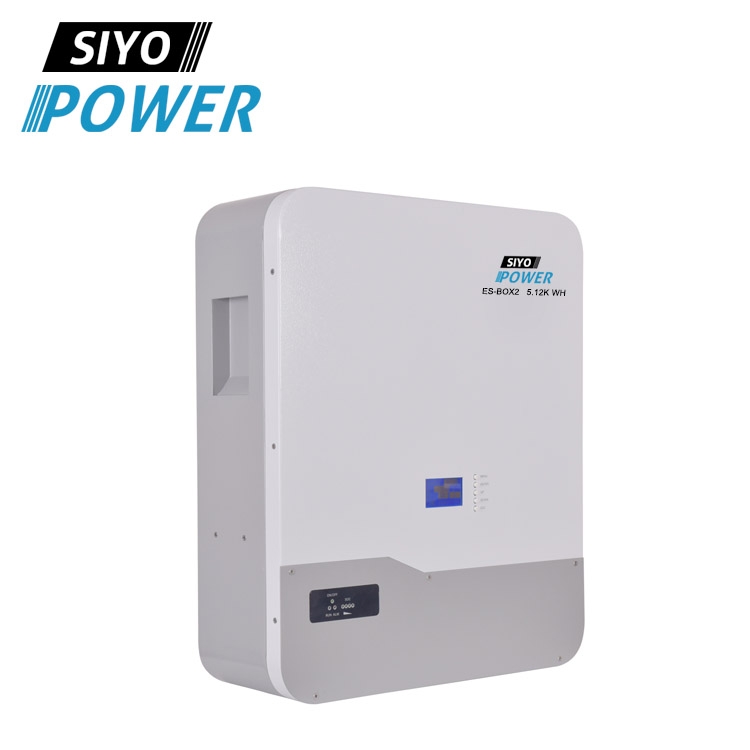

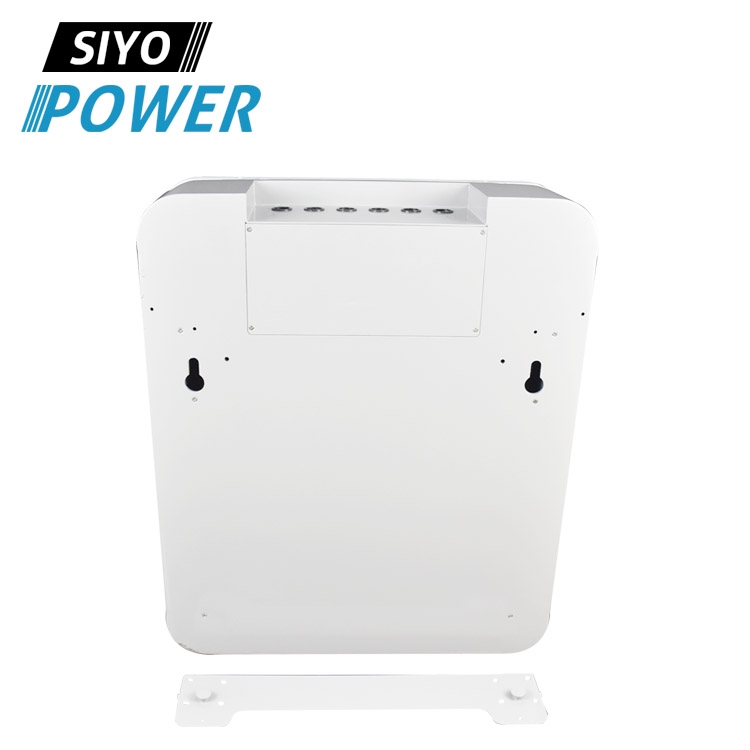

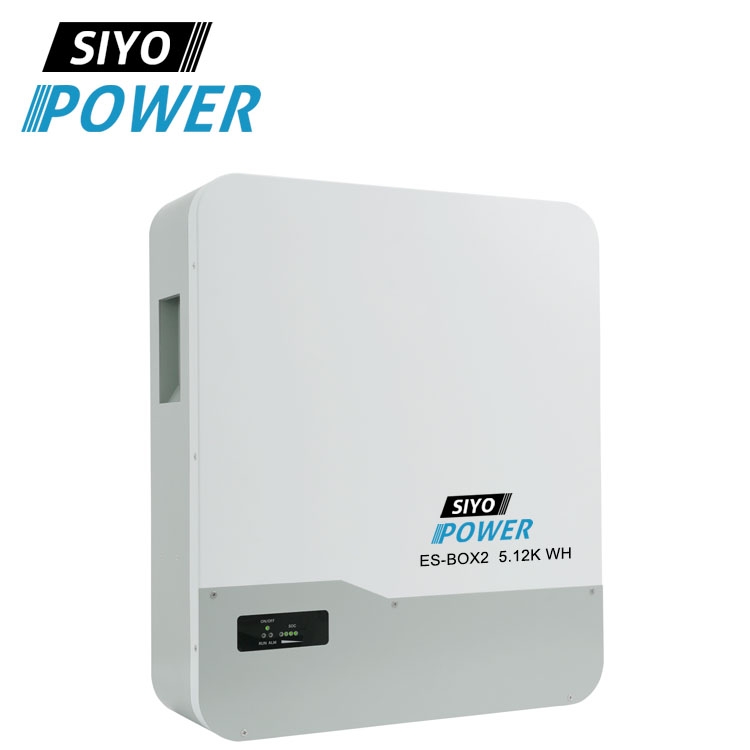

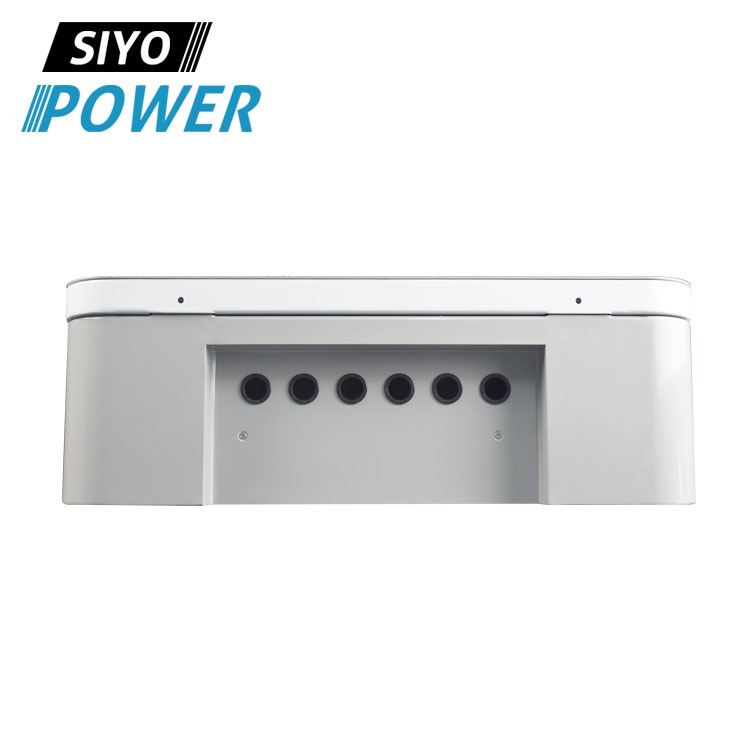

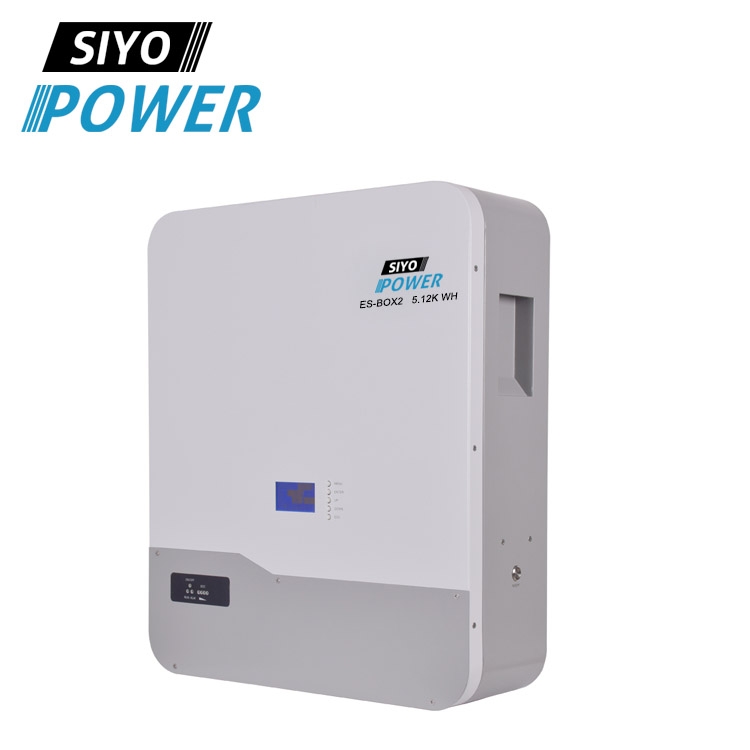

5kWh Wall Power for Off-grid Solar System

Model: SY-GGW5kWh
Battery: LiFePO4
Nominal Voltage:51.2V -16S
Nominal Capacity: 100 AH
Nominal energy: 5.12 kWh
Operation voltage range:40.0V-57.6V
Standard charge current:20A
Max. Continuous charge current:100A
Standard discharge current:20A
Max. Continuous discharge current:100A
Charging protection voltage:55V
Float charge(approx):55.2V
Temperature sensor protection：65℃
Charging temperature: 0~45℃
Working Temperature: -20~60℃
Over-current Fuse: 120A
Cycle life: 4000 times(80%DOD )
Communication: RS485/RS232/CAN

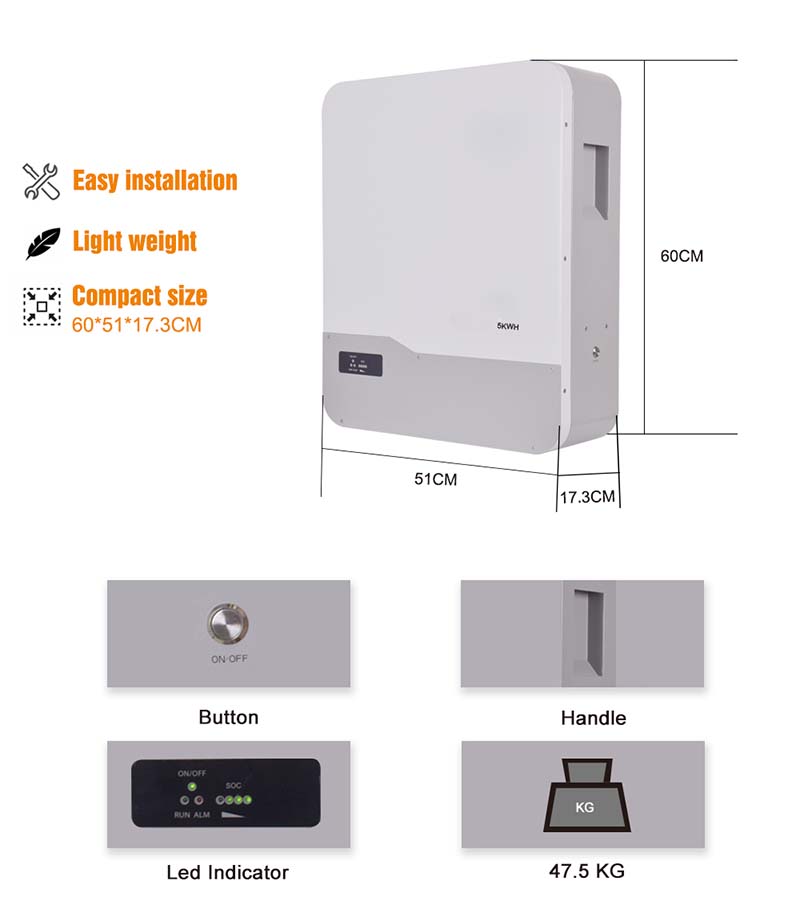

Box Size:600*510*173mm
Weight (KGS): 63.5KGS

Categories:5kWh

Product Advantages

1. Lifepo4 battery pack. It is new environmentally friendly backup power system focus on short-time and high-rate discharge scenarios.

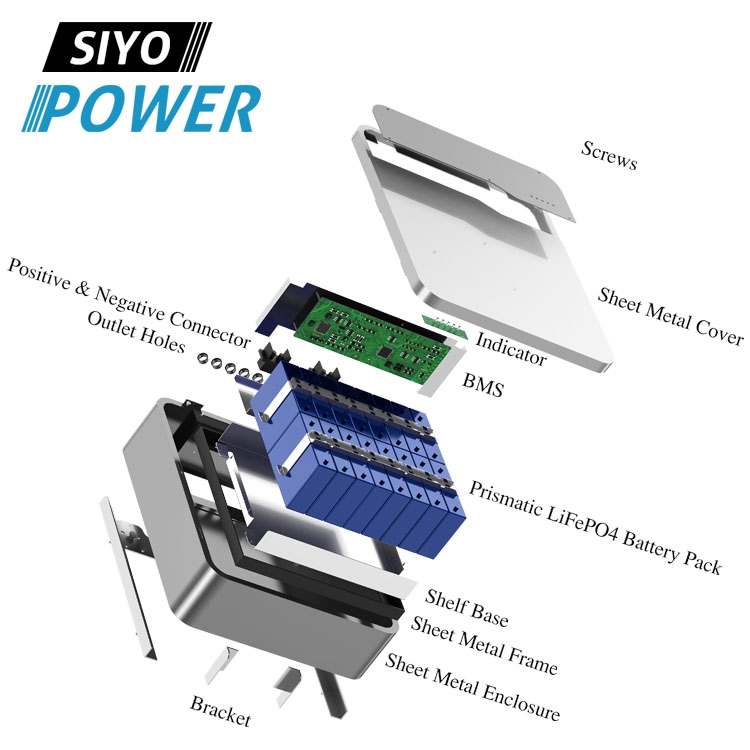

Built-in high-performance BMS. Compared with conventional battery, our battery has a wide range of performance and application advantages, since we choose improted chips and MOS,which provides balancing function and dual protection, .

Low internal resistance and high, flat voltage characteristics during strong current discharge, which ensures a wider application field.

Low self discharge, and Fast & Efficient Charging.

Grade-A cells, guaranteeing longer cycle life. Full inspection before shipment,ensuring zero defect.

No maintenance requirements.

 Calender life: 10 years.

 Matched Inverters: SMA, Studer Victron,Growatt, Sofar, Deye, Sungrow,Solis, Solax Goodwe,Voltronics,Sorotech and etc

Note: 1.LCD SCREEN is optional;

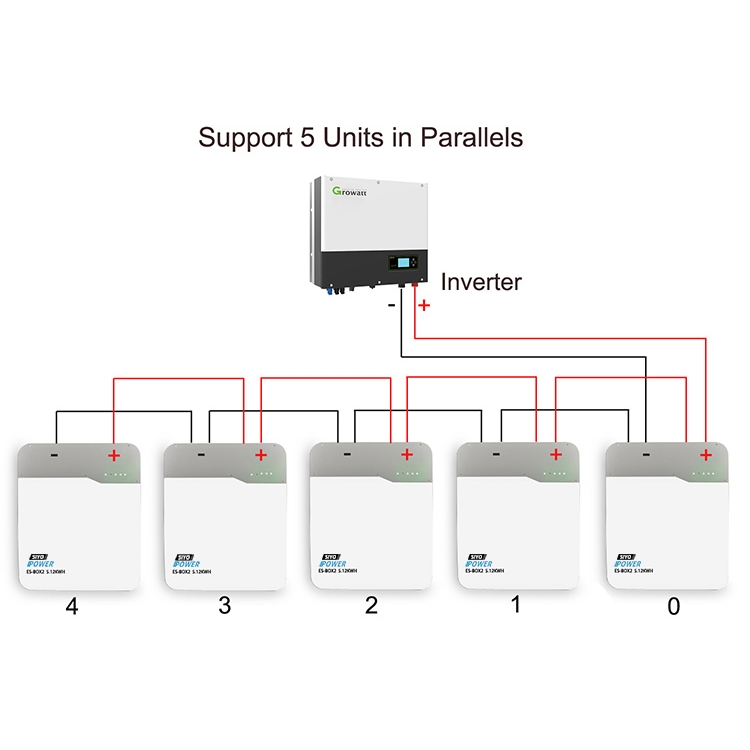

2.In parallel< 8 units ;

Product Description

How does it work

What is a solar battery and how does it work?

		Solar panels make more electricity during the middle of the day than they do at any other time.

The middle of the day also happens to be when homes use the least amount of electricity. Because of this, your solar panels will produce a lot of electricity in the afternoon that you won't need.

				 Solar batteries are able to store that extra solar energy so you can use it later on.

				Solar home batteries are able to store that extra solar energy so you can use it later on. This lets you power your home on clean renewable energy from your solar panels, even when they aren't producing electricity.

What's great about installing a solar LiFepo4 battery is that it allows you to be less reliant on the grid while ensuring you have access to reliable backup power when there's a power outage.
