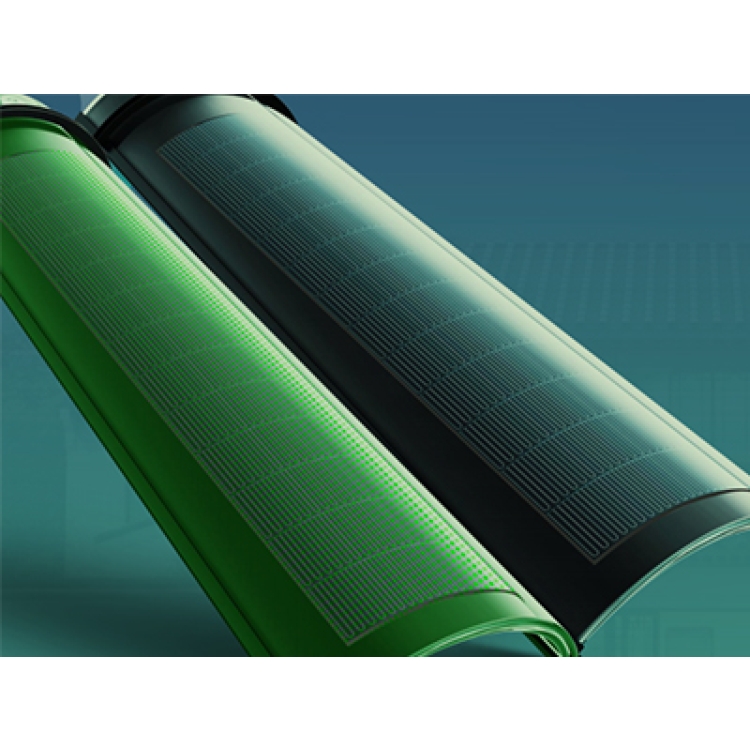

Siyopower Double-Glass Half-cylinder Solar Roof Tile 10w

Physical parameters
product model:
SY-HT1F
Color: Standard:black; Optional: red/green
Dimension: 1460*435*21mm
Junction box:39*46*16.6 (mm) IP67
Thickness:7.5mm
Cable type:2.5mm solar cable 450 (+10/-0) mm
Qty per ㎡:2pcs/㎡
cable connector:MC4
weight/pcs:6. 5Kg/pcs
Glass Transmittance:91.5%
Weight/㎡:22.36Kg
Glass type:tempered glass

Reliability parameters
chip type:CIGS
loading grade:5400Pa
power/pcs:Black:100W ;Red/Green:85W（± 7%）
waterproof grade:IP67
power/㎡:Black:200W ;Red/Green:170W（± 7%）
fire-proof grade:A
short-circuit current:4A
hail-proof grade:level 4 (ANSI FM 4473)
open-circuit voltage:10.6V
working temperature:-40°C to +85°C
current at PMPP:3.5A
Wind-proof gradeF
voltage at PMPP:8.6V
Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
