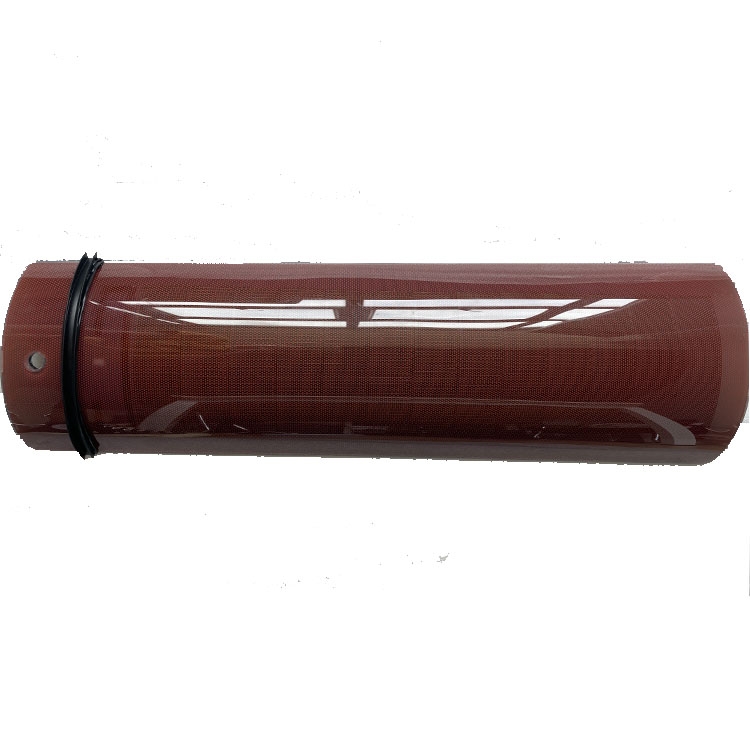

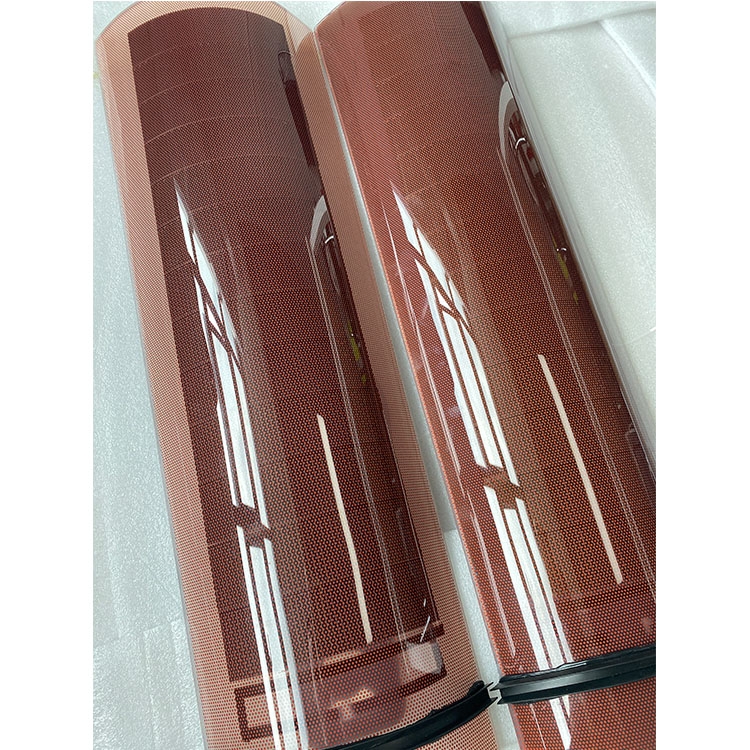

Siyopower new coming BIPV Archy Solar Roof Tile

Physical parameters
product model:
SY-HT1C-R
Color: Standard:black; Optional: red/green
Dimension: 720*224(187)*66(57)mm
Junction box:39*46*16.6 (mm) IP67
Cable type:2.5mm solar cable 450 (+10/-0) mm
Qty per ㎡:5.47pcs/㎡
cable connector:MC4
weight/pcs:4. 5Kg/pcs
Glass Transmittance:91.5%
Weight/㎡:24.6Kg
Glass type:tempered glass

Reliability parameters
chip type:CIGS
loading grade:5400Pa
power/pcs:Black:11.5W ;Red/Green:9W（± 7%）
waterproof grade:IP67
power/㎡:Black:62.9W ;Red/Green:49.23W（± 7%）
fire-proof grade:A
short-circuit current:1.39A
hail-proof grade:level 4 (ANSI FM 4473)
open-circuit voltage:7.68V
working temperature:-40°C to +85°C
current at PMPP:1.2A
Wind-proof gradeF
voltage at PMPP:6.26V
Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
