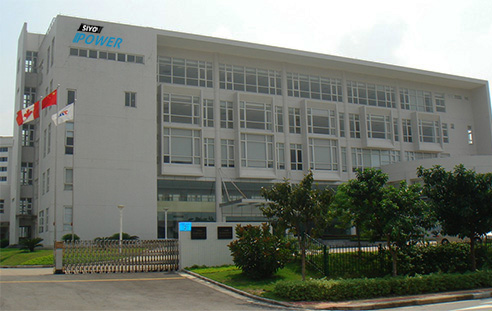

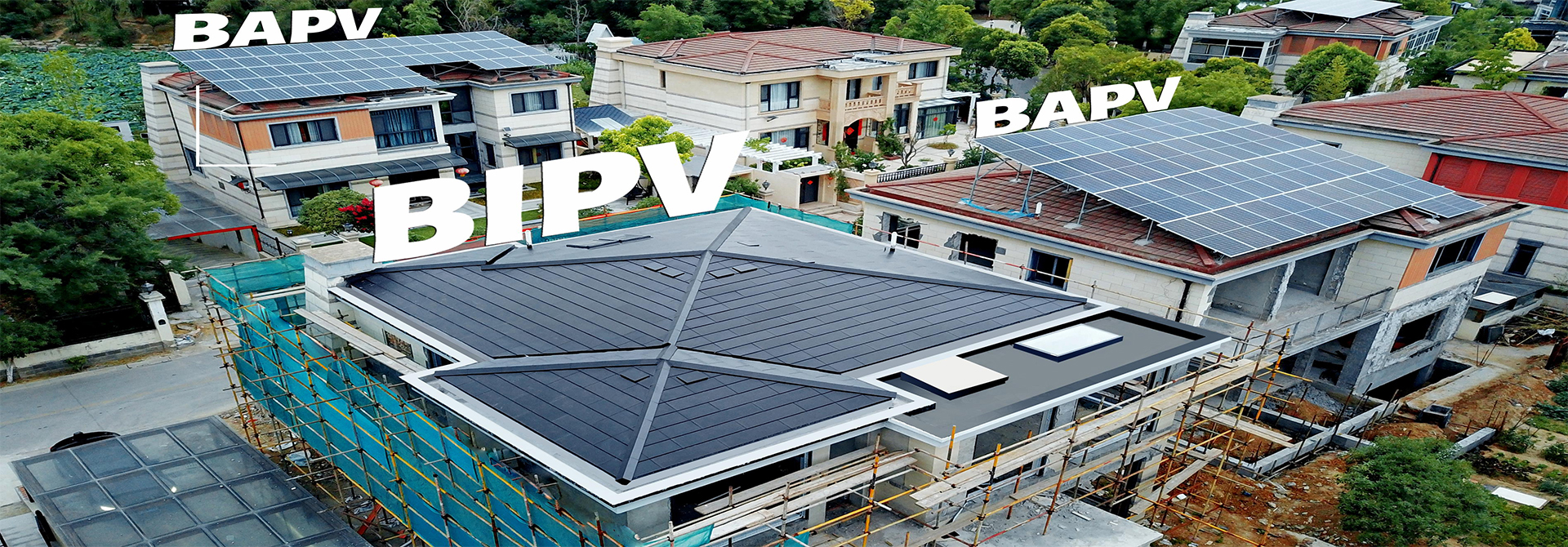

Shenzhen Siyo Technology Co., Ltd., located in Pingshan Shenzhen, has dedicated on the new energy field for 10+years. It's capable to design new products according to the needs of market, and produce for OEM customers as well. We have a R&D team of dozens of talents, who are specialized in PV modules,BIPV solar roof tiles, solar energy storage system, OEM solar products, helping the company keep launching upgraded products with advantages every year.The company takes"advanced R&D capability ,high quality and good service" as the core value, committed to a green,economic and aesthetic solar industry to create a beautiful world. In the past years, SIYOPOWER focuses on the BIPV solar roof market, having built up business relationship with enterprises home and abroad. We have cooperated with government projects,residential villas, and commercial buildings, accumulating many successful design&installation experiences. We are able to provide solar roof layout and system design in pre-sale services, and provide one-stop solution for solar roof construction. Looking forward your inquiry!
Physical parameters , product model: , SY-HT1C-R , Color: Standard:black; Optional: red/green , Dimension: 720*224(187)*66(57)mm , Junction box:39*46*16.6 (mm) IP67 , Cable type:2.5mm solar cable 450 (+10/-0) mm , Qty per ㎡:5.47pcs/㎡ , cable connector:MC4 , weight/pcs:4. 5Kg/pcs , Glass Transmittance:91.5% , Weight/㎡:24.6Kg , Glass type:tempered glass , , Reliability parameters , chip type:CIGS , loading grade:5400Pa , power/pcs:Black:11.5W ;Red/Green:9W（± 7%） , waterproof grade:IP67 , power/㎡:Black:62.9W ;Red/Green:49.23W（± 7%） , fire-proof grade:A , short-circuit current:1.39A , hail-proof grade:level 4 (ANSI FM 4473) , open-circuit voltage:7.68V , working temperature:-40°C to +85°C , current at PMPP:1.2A , Wind-proof gradeF , voltage at PMPP:6.26V , Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
Wafer size: 182 , Power: 405W-550W , Cell efficiency: >21% , Technology: PERC , Half-cell , Dimension: 2278*1134*35mm , Weight: 28.6kg
Physical parameters , product model: , SY-TD1F , Cell type: Monocrystalline silicon PERC , Color: Standard:black; , Dimension: 1240*390*6.2mm , Junction box:39*46*16.6 (mm) IP67 , Qty per ㎡:2.43pcs/㎡ , cable connector:MC4 , weight/pcs:6. 5Kg/pcs , Glass Transmittance:91.5% , Weight/㎡:16Kg , Glass type:tempered low-iron glass , , Reliability parameters , , loading grade:5400Pa , power/pcs:70W , waterproof grade:IP67 , power/㎡:Black:170W , open-circuit voltage:9.58V , short-circuit current:9.72A , Working current(Imp•A) :8.94A , Working voltage (Vpm•V):7.83V , working temperature:-40°C to +85°C , Wind-proof grade: F , fire-proof grade:A , hail-proof grade:level 4 (ANSI FM 4473) , Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
Physical parameters , product model: , SY-HT1F , Color: Standard:black; Optional: red/green , Dimension: 1460*435*21mm , Junction box:39*46*16.6 (mm) IP67 , Thickness:7.5mm , Cable type:2.5mm solar cable 450 (+10/-0) mm , Qty per ㎡:2pcs/㎡ , cable connector:MC4 , weight/pcs:6. 5Kg/pcs , Glass Transmittance:91.5% , Weight/㎡:22.36Kg , Glass type:tempered glass , , Reliability parameters , chip type:CIGS , loading grade:5400Pa , power/pcs:Black:95W ;Red/Green:85W（± 7%） , waterproof grade:IP67 , power/㎡:Black:190W ;Red/Green:170W（± 7%） , fire-proof grade:A , short-circuit current:4A , hail-proof grade:level 4 (ANSI FM 4473) , open-circuit voltage:10.6V , working temperature:-40°C to +85°C , current at PMPP:3.5A , Wind-proof gradeF , voltage at PMPP:8.6V , Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
Physical parameters , product model: , SY-HT3C , Color: Standard:black; Optional: red/green , Dimension: 721*500*33mm , Junction box:39*46*16.6 (mm) IP67 , Thickness:8 mm , Cable type:2.5mm solar cable 450 (+10/-0) mm , Qty per ㎡:3.44pcs/㎡ , cable connector:MC4 , weight/pcs:6. 5Kg/pcs , Glass Transmittance:91.5% , Weight/㎡:22.36Kg , Glass type:tempered glass , , Reliability parameters , chip type:CIGS , loading grade:5400Pa , power/pcs:Black:30W ;Red/Green:25W（± 7%） , waterproof grade:IP67 , power/㎡:Black:103W ;Red/Green:85W（± 7%） , fire-proof grade:A , short-circuit current:4A , hail-proof grade:level 4 (ANSI FM 4473) , open-circuit voltage:10.6V , working temperature:-40°C to +85°C , current at PMPP:3.5A , Wind-proof gradeF , voltage at PMPP:8.6V , Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
Physical parameters , product model: , SY-HT3C , Color: red ; Optional:black/green , Dimension: 721*500*33mm , Junction box:39*46*16.6 (mm) IP67 , Thickness:8 mm , Cable type:2.5mm solar cable 450 (+10/-0) mm , Qty per ㎡:3.44pcs/㎡ , cable connector:MC4 , weight/pcs:6. 5Kg/pcs , Glass Transmittance:91.5% , Weight/㎡:22.36Kg , Glass type:tempered glass , , Reliability parameters , chip type:CIGS , loading grade:5400Pa , power/pcs:Black:30W ;Red/Green:25W（± 7%） , waterproof grade:IP67 , power/㎡:Black:103W ;Red/Green:85W（± 7%） , fire-proof grade:A , Current at PMPP:3.5A , Voltage at PMPP:8.6V , Short-circuit current:4A , Open-circuit voltage:10.6V , Working temperature:-40°C to +85°C , Hail-proof grade:level 4 (ANSI FM 4473) , Wind-proof gradeF , Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
Physical parameters , product model: , SY-HT1F , Color: Standard:black; Optional: red/green , Dimension: 1460*435*21mm , Junction box:39*46*16.6 (mm) IP67 , Thickness:7.5mm , Cable type:2.5mm solar cable 450 (+10/-0) mm , Qty per ㎡:2pcs/㎡ , cable connector:MC4 , weight/pcs:6. 5Kg/pcs , Glass Transmittance:91.5% , Weight/㎡:22.36Kg , Glass type:tempered glass , , Reliability parameters , chip type:CIGS , loading grade:5400Pa , power/pcs:Black:100W ;Red/Green:85W（± 7%） , waterproof grade:IP67 , power/㎡:Black:200W ;Red/Green:170W（± 7%） , fire-proof grade:A , short-circuit current:4A , hail-proof grade:level 4 (ANSI FM 4473) , open-circuit voltage:10.6V , working temperature:-40°C to +85°C , current at PMPP:3.5A , Wind-proof gradeF , voltage at PMPP:8.6V , Hail Impact Test:Max Diameter: 25mm impact speed: 23m/s
SY-WA1200 , Capacity: 1200W /324000mAh , Battery cells: Lithium-ion cells , Dimension: 210*290*150mm , Net Weight:13kg
SY-RSZ1000 , Capacity: 1000W/ 1016Wh /278400mAh , Battery cells: Lithium-ion cells , Dimension: L325*W190*H138mm , Net Weight: 8.3kg
48V 50Ah Lithium ion battery , , The entire battery pack uses a total 256pcs of 32700 lithium iron phosphate cylinders battery cell. The battery pack configuration is 8 series and 32 parallels, a single cell is 3.2V 6.3Ah. The whole system has a battery box and a battery management system, which can realize battery system management, charge and discharge control, external communication, , , The BMS can realize RS232 communication, single voltage collection, temperature acquisition, SOC calculation, total pressure detection, current detection, single-section differential pressure detection, cycle number, overcurrent, overcharge, over discharge, short circuit, high temperature, low temperature. Pressure difference. Communication alarm.
Model: SY-GGW5kWh , Battery: LiFePO4 , Nominal Voltage:51.2V -16S , Nominal Capacity: 100 AH , Nominal energy: 5.12 kWh , Operation voltage range:40.0V-57.6V , Standard charge current:20A , Max. Continuous charge current:100A , Standard discharge current:20A , Max. Continuous discharge current:100A , Charging protection voltage:55V , Float charge(approx):55.2V , Temperature sensor protection：65℃ , Charging temperature: 0~45℃ , Working Temperature: -20~60℃ , Over-current Fuse: 120A , Cycle life: 4000 times(80%DOD ) , Communication: RS485/RS232/CAN , Box Size:600*510*173mm , Weight (KGS): 63.5KGS
Model: SY-GGB5W10kWh , Battery: LiFePO4 , Nominal Voltage:51.2V -16S , Nominal Capacity: 200 AH , Nominal energy: 10.24 kWh , Operation voltage range:40.0V-57.6V , Standard charge current: 40A , Max. Continuous charge current:100A , Standard discharge current: 40A , Max. Continuous discharge current:100A , Charging protection voltage:55V , Float charge(approx):55.2V , Temperature sensor protection: 65℃ , Charging temperature: 0~45℃ , Working Temperature: -20~60℃ , Over-current Fuse: 120A , Cycle life: 4000 times(80%DOD ) , Communication: RS485/RS232/CAN , Box Size: 900*420*220mm , Weight (KGS):91KGS
